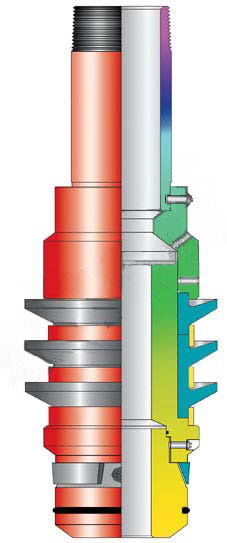

XJS PUMP-DOWN PLUG

Product description




XJS PUMP-DOWN PLUG

Features:

The pump-down plug is used to land and lock in a liner wiper plug. The combined plugs wipe the liner and land in the landing collar to complete cement displacement.





TECHNICAL PARAMETERS

Specifications

5 1/2"

5"

3 1/2"

2 7/8"

Guiding Nose Max O.D. ,mm

71

58

47

40

Overall Length ,mm

347

324

317

233







DJS LINER WIPER PLUG

Features:

After the pump-down plug has landed and locked in the liner wiper plug, the combined plugs wipe the liner and land in the landing collar to complete cement displacement. The locking clutch ensures tight latching of the plugs and thus preventing cement back flow.





TECHNICAL PARAMETERS

Specifications

10 3/4"

9 5/8"

8 1/8"

7 5/8"

7"

5 1/2"

5"

4 1/2"

4"

3 1/2"

Liner Thickness ,mm

12.57
13.84

10.03
11.05
11.99

13.5

9.52
10.92
12.7

10.36
11.51
12.65

7.72
9.17
10.54

7.52
9.19

6.35
7.37

5.74

6.54
7.34
9.53


 *Shear Pressure:12 MPa
