Product name

SYX-AF LINER HANGER PACKER

Product description

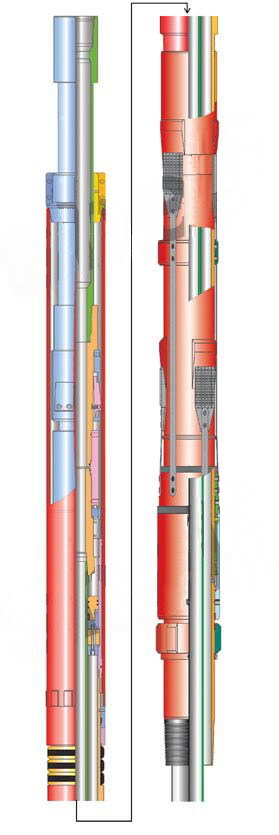

SYX-AF LINER HANGER PACKER

Features:

1、The Model SYX-AF Liner Hanger Packer combines an integral liner top packer with a liner hanger, thus it's able to hang the liner and conduct effective seal on the liner top.

2、The packing elements have superior capacity to resist acid, alkali, oil and high temperature.

3、The packer is able to withstand 35 MPa differential pressure.

4、The setting tool cal be easily released just by applying certain weight on the drill string and rotating clockwise.

5、The Retrievable Pack-Off Bushing can be retrieved together with the setting tool after cementing, eliminating drill-out.

TECHNICAL PARAMETERS：

Specifications	Packing Elements O.D. ,mm	Packer Setting Starting Load ,KN	Packer Setting Load ,KN	Sealing Capacity ,MPa	Casing Thickness ,mm	Casing Weight ,KG/m
10 3/4"X8 1/8"	233	150	250-500	﹥35	11.43 12.87 13.84	75.89 82.58 90.32
10 3/4"X7 5/8"
10 3/4"X7"
9 5/8"X7"	208				10.03 11.05 11/99	59.52 64.73 69.94
9 5/8"X5 1/2"
8 1/8"X5 1/2"	167				13.5	63.77
7"X5"	146				9.19 10.36 11.51	38.69 43.15 47.62
